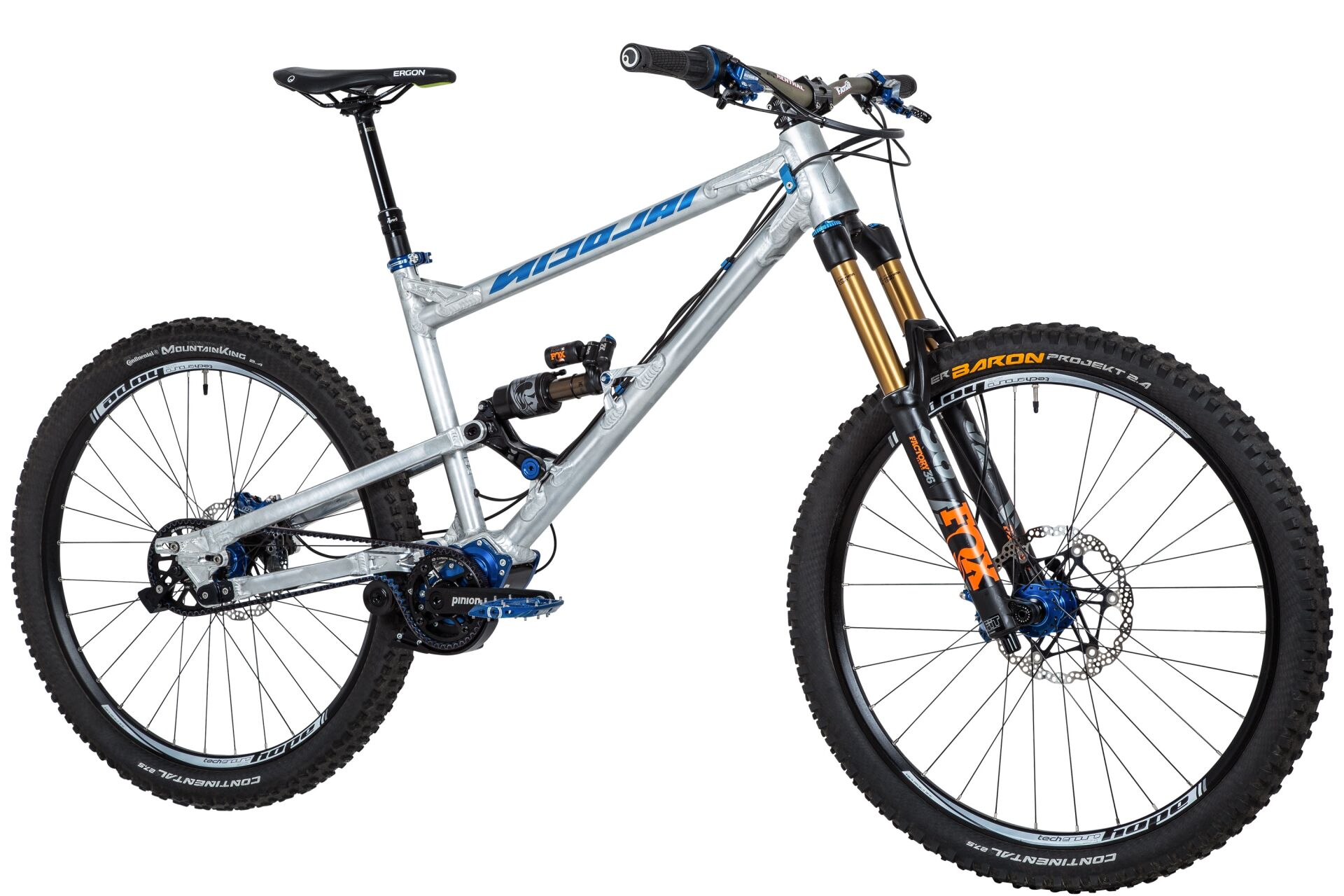

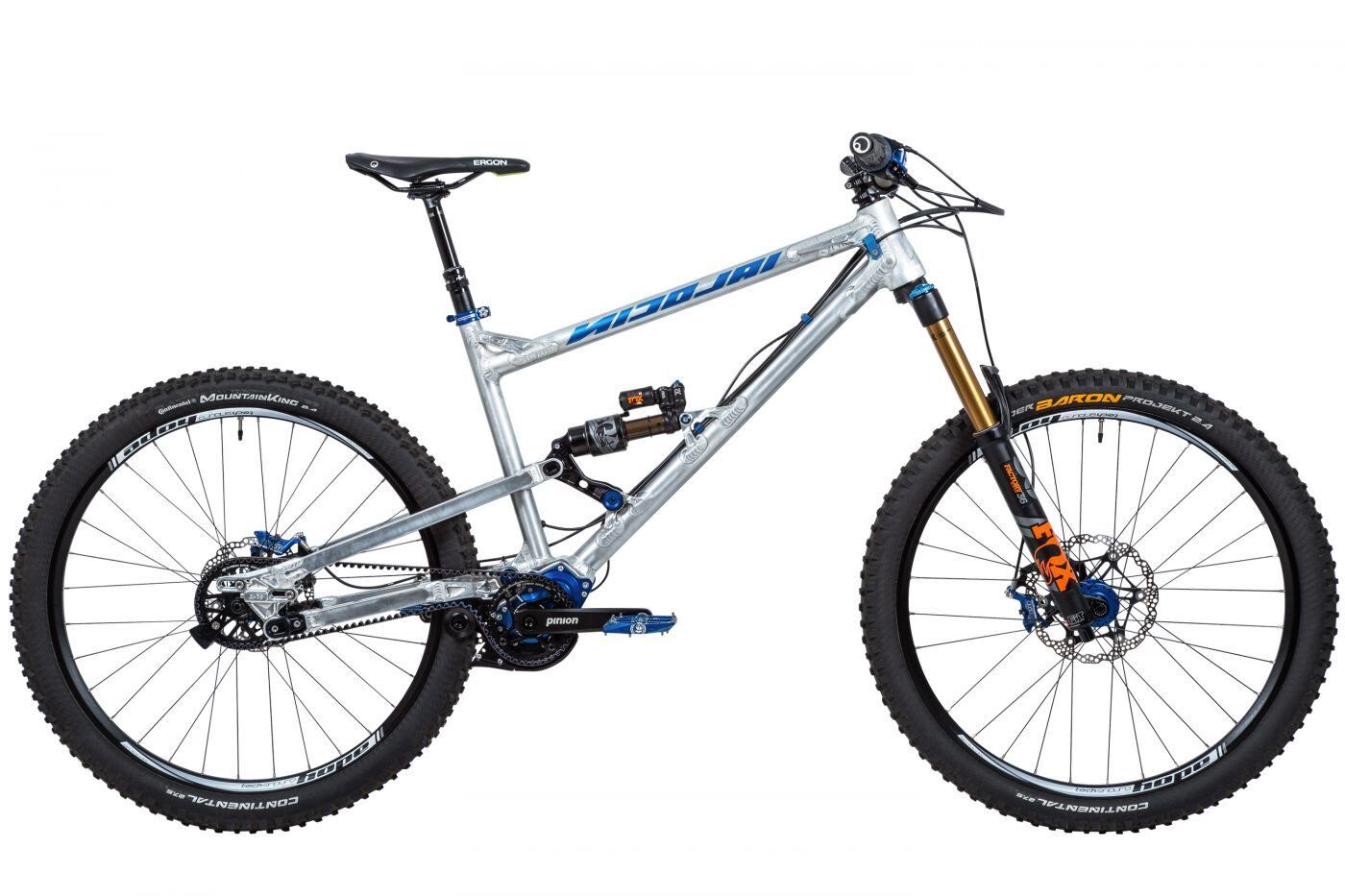

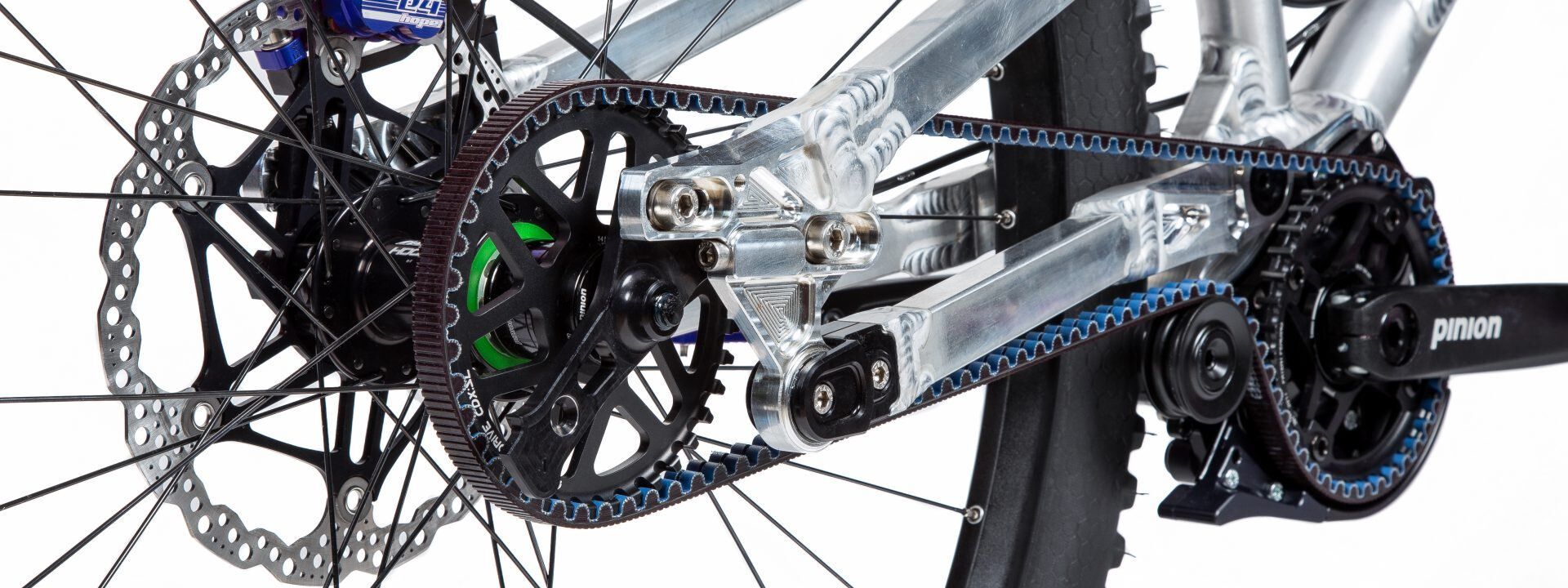

Based on the ION-G16 there is also a GPI version of the Enduro. With its unique combination of our groundbreaking GEOLUTION geometry, the integrated pinion gear and a maintenance-free GATES Carbon Drive timing belt drive, the ION-G16 GPI is a dream come true for all those who no longer want to adjust and screw and simply want to drive. But be careful, the bike is very fast… And because the GPI glides so quietly over the trails without a chain and with its performance suspension, the competition may not notice you until you have already passed the inside line. By the way, even if its true strength lies where gravity pushes downhill, you will be amazed how safe and confident you can overcome even the steepest climbs with the ION-G16 GPI – thanks to the 600% ratio bandwidth in the Pinion gearbox and GEOLUTION geometry.

WELDING TECHNOLOGY

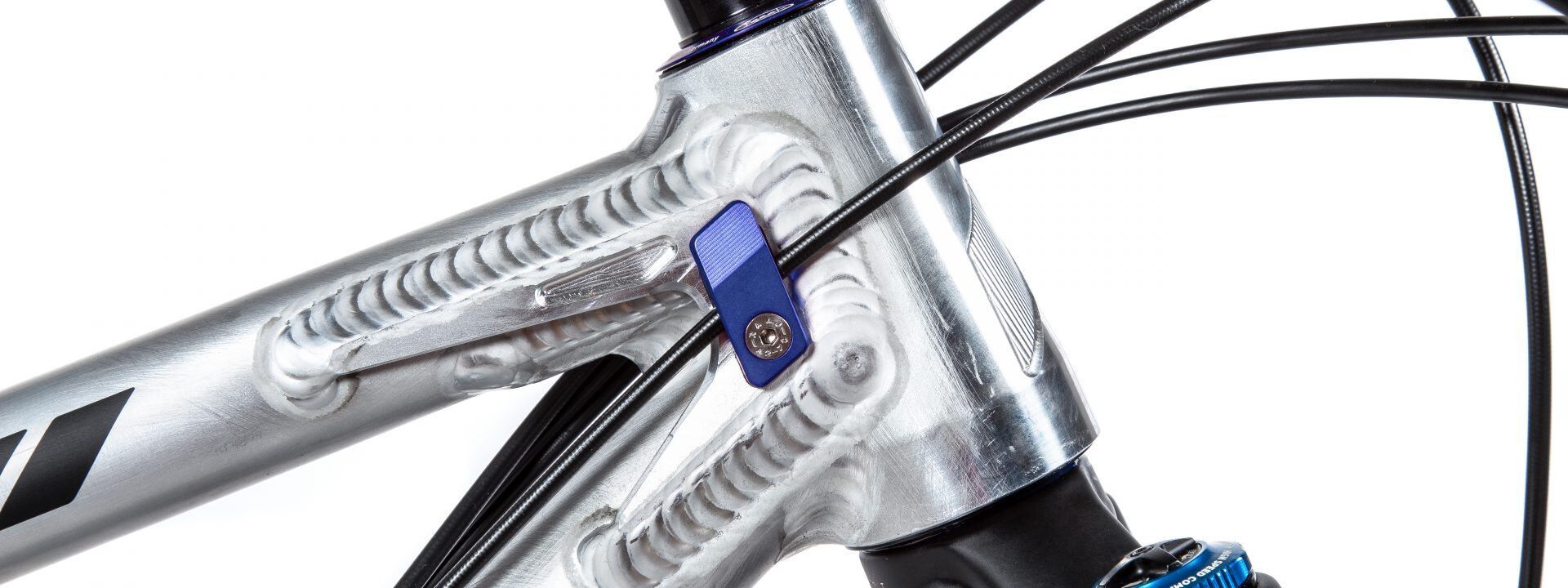

A NICOLAI IS ALWAYS RECOGNIZABLE BY ITS WELDS

We design a unique jig for every model and frame size. The tubes and machined components are turned and milled as necessary and then mounted in the jig, fitting perfectly together. Then, these parts are tacked together by spot welding.

The frame is then welded in several passes by TIG (tungsten inert gas) to reduce distortion. By reducing the distortion as much as possible it improves the alignment of the frame. Our flat, even welds are time-consuming but ensure that the material is properly fused, improving strength.

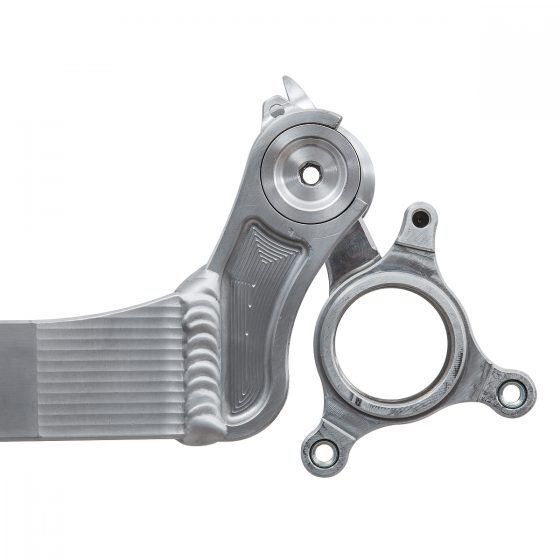

ANGULAR CONTACT BEARINGS

4 WAY SEALED

The rear triangle of a full suspension bike is not a statically rigid component and is exposed to extreme loads during driving. Critical points are the ball bearings, which ensure low breakaway torque and optimum response of the chassis. In order to extend the maintenance intervals of the frame, Nicolai products rely exclusively on full complement, double-sealed ball bearings.

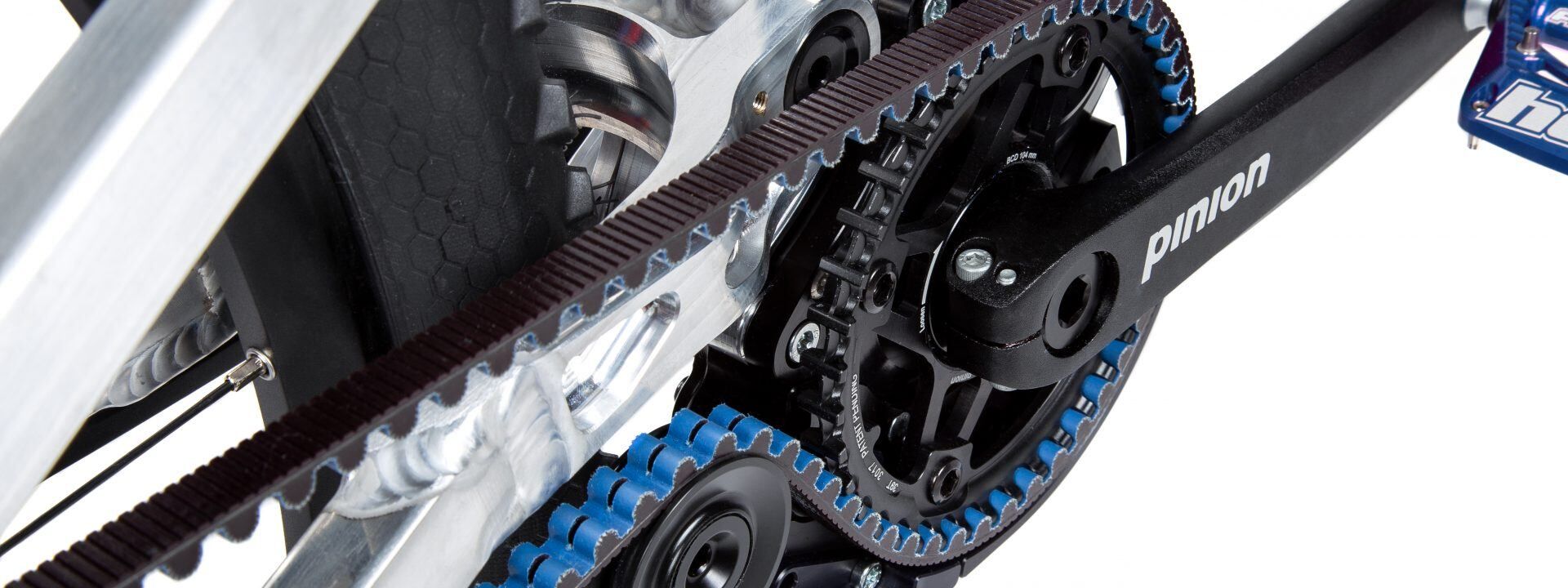

Pinion Option

CONTROLLED PERFORMANCE

The Pinion GmbH transmission is low-maintenance and optimally integrated into the bicycle frame. The central centre of gravity and the lighter rear wheel bring noticeable advantages in handling, driving dynamics and rear performance. The transmission responds to shift commands in a flash.

Topologie-optimierte Struktur

A bicycle frame and its components are exposed to extreme forces during use. In order to develop a durable, robust but also lightweight bicycle frame, all components are designed at NICOLAI GmbH using topology optimization.

COLOR VARIETY

Extralove

With a NICOLAI frame, you decide the design. Every Nicolai frame can be produced in any colour according to your preferences. Choose from different frame colours, anodised colours for reversing levers and pull holders as well as frame decor to add your individual touch to the frame.

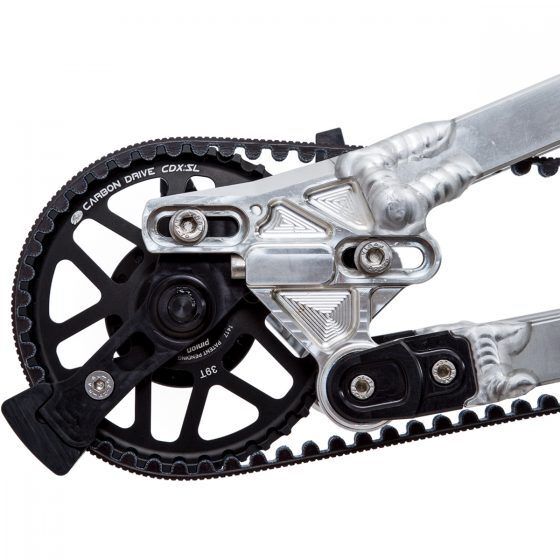

Rado

Rear Aligning Dropout

So that you can hit every lane on the trail, we mount a form-fit sliding, exchangeable dropout for track and camber adjustment on all frames. Due to the differently milled, right dropouts for adjusting the lintel, the rear only needs to be slightly readjusted after installation. This takes the strain off the material. The respective lintel height is milled into the RADO with the digits 0, 1, 2 or -1 and -2. After the toe and camber have been set, the RADO is fixed ex works with a pin. This makes the original setting easily reproducible during replacement. This is the only way we can guarantee that NICOLAI products work precisely on the track.

ET KEY

THE RIGHT SETTING FOR EVERY TRAIL

The ET Key is an adjustable aluminum insert that allows you to vary the active length of the compression strut/seatstay at its connection to the rocker link. A simple 180º rotation of the ET Key can be changed in a few simple steps to adjust the geometry of the rear triangle. Depending on the model, the ET Key has different functions and effects on shock lengths, suspension travel and frame geometry. The ION G16 ET Key ensures consistent geometry when using the two optional shock dimensions 216 x 63mm or 222 x 70mm. On the ION G15 and the ION G19, on the other hand, the ET Key allows geometry adjustment while maintaining the same shock length. In the Low position, the head angle becomes slacker and the bottom bracket lower. In the High position, you achieve a steeper head angle and a higher bottom bracket.

MANUFACTURING QUALITY

The manufacturing quality itself is not yet an added value for a customer. The following two added values result from production quality:

Durability & precise driving characteristics

Only if the welds are welded deep into the root and have no notches, a bike frame can withstand the impacts from the ground for many years without breaking. Precise riding characteristics are achieved when the rear wheel is precisely straight to the front wheel and even a layman notices that an oblique bike rides strangely (but usually he thinks it’s because of his riding ability).

TAILOR MADE

WE MANUFACTURE YOUR CUSTOM-MADE FRAME

You can order, pay for and pick up your tailor made frame directly from us or from your Nicolai dealer. For technical details, please contact us directly. First we need to know why you want to ride a custom-made frame. Most of the reasons lie in the past.

Geolution

Einzigartiges, kompetitives Enduro Geometrie-Design

“We don’t care about trends! All that matters is lap times, driving pleasure, safety and the physical facts.” This quote from Kalle Nicolai describes Nicolai’s approach to the development of new mountain bikes. This mission statement has made NICOLAI one of the most innovative bicycle companies in terms of chassis performance, steering dynamics and geometry.

10 YEARS SPARE PARTS AVAILABILITY

If after a few years of hard work a bearing on a Nicolai frame needs to be replaced, a RADO needs to be replaced due to a fall or a frame needs a new coating, the NICOLAI service staff is the right contact. Since we at NICOLAI manufacture all small parts on our machines, we can also produce spare parts for older models if required. We therefore guarantee spare parts availability of at least 10 years for all Nicolai products.

BIKE CONFIGURATOR

You can now configure the ION G16 GPI as a complete bike. Components from HOPE, FOX, SRAM, MAGURA, RESET, CONTINENTAL, SQLAB, RENTHAL are available. Choose your wheel size and configure your dream bike now.
